This page contains photographs of the movements that were used in the Heuer chronographs and dashboard timepieces, in a format that serves as a recognition guide.

Chronograph Movements

Valjoux 22

Early Valjoux 22 movement shown in chronograph circa 1917

Valjoux 22 movement shown in Reference 333 chronograph (circa 1950)

Valjoux 22 movement shown in Reference 347 chronograph

Valjoux 22 movement shown in Reference 3336 chronograph (circa 1955)

Valjoux 23

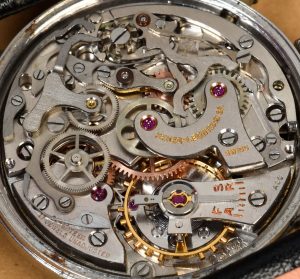

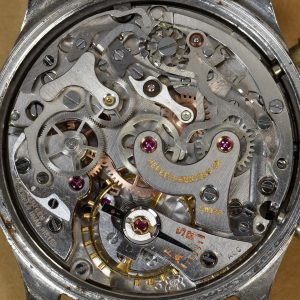

shown in Reference 404 chronograph, circa 1960

Valjoux 230

shown in Heuer Bundeswehr chronograph

Venus 170

12.5 Ligne; diameter = 28.2mm; height = 6.0mm;
17 jewels; frequency = 18000 A/h; power reserve = 40 hours

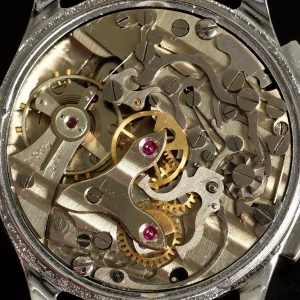

Venus 170 movement, shown in Up / Down Chronograph

Valjoux 77

13 Ligne; diameter = 29.5mm; height = 6.0mm;
17 jewels; frequency = 18000 A/h; power reserve = 39 hours

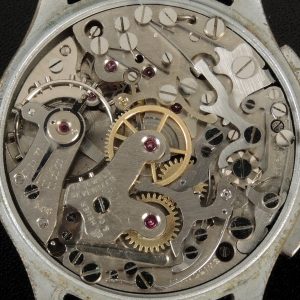

Valjoux 77 movement, shown in Up / Down Chronograph, Reference 3248

Valjoux 71 (shown in Reference 346 Chronograph) — circa 1946



Valjoux 71 (shown in Reference 345 Chronograph)

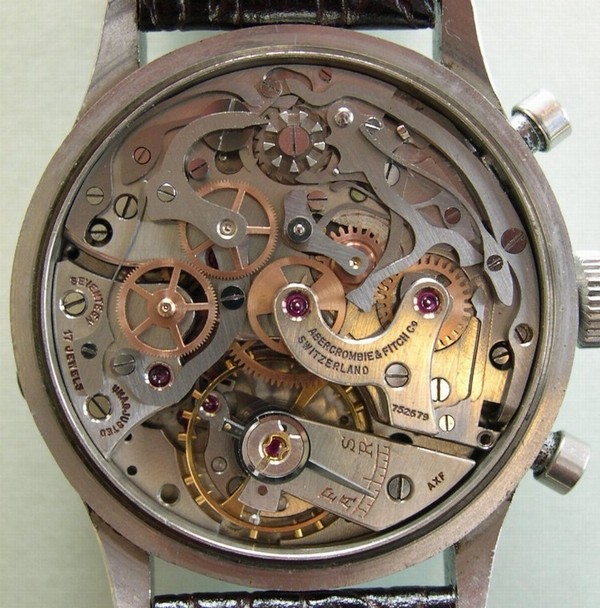

Valjoux 71 (shown in Abercrombie & Fitch Seafarer, early 1950’s)

Early Valjoux 72 (shown in Reference 2447 Chronograph)

Valjoux 72 (shown in early Heuer Carrera, with screw-back case)

Valjoux 72 (shown in Heuer Autavia)

Valjoux 72 (shown in Heuer Camaro)

Valjoux 72C — triple calendar (shown in Early Heuer Triple Calendar Chronograph, Reference 2543, circa 1946)

Valjoux 721 — with tide dial (shown in Abercrombie & Fitch Seafarer, circa 1955)

Valjoux 721 — with tide dial (shown in Abercrombie & Fitch Seafarer, Ref 2444 (Second Execution), Circa 1960

Valjoux 92 — marked Ed. Heuer & Co. SA (shown in Autavia, Reference 3646; serial 524xx)

Valjoux 92 — Marked Heuer Leonidas SA (shown in Carrera, Reference 3647; serial 756xx)

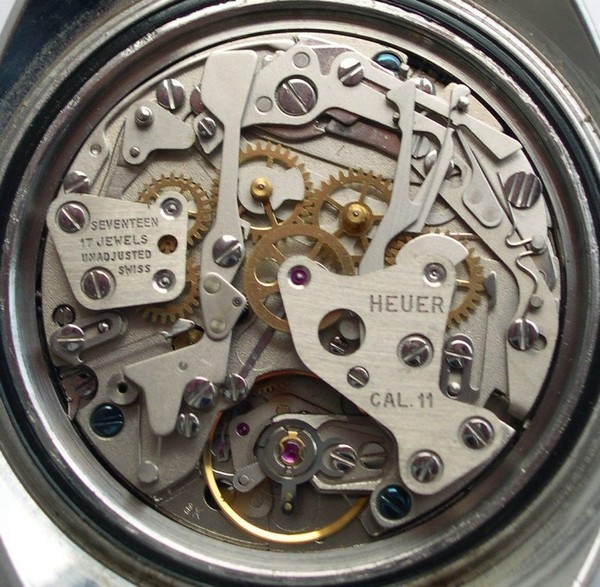

Early Caliber 11 (shown in “Chronomatic” Version of the Monaco, reference 1133B)

Caliber 11 (shown in “Siffert” Version of the Autavia, reference 1163T)

Caliber 12 — shown in Autavia “Viceroy” chronograph, Reference 1163V (circa 1972)

Caliber 12 — shown in Jarama chronograph, Reference 110.223 (circa 1977)

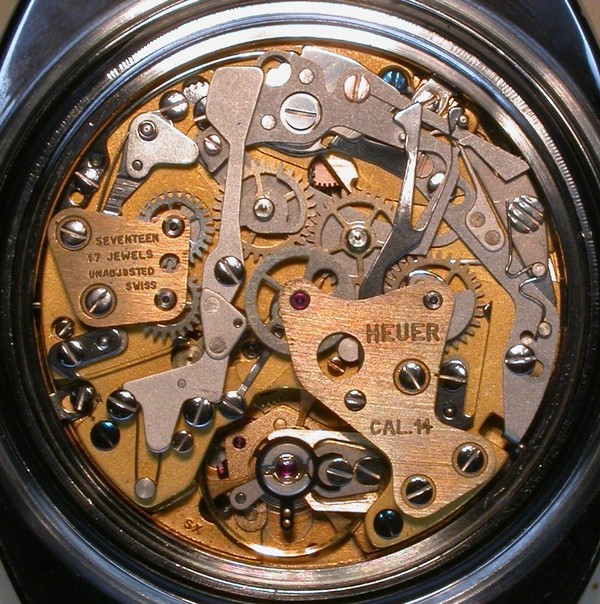

Caliber 14 (shown in Autavia GMT, reference 1163 GMT)

Valjoux 7733 (shown in Military Version of Autavia, reference 73363)

Valjoux 7736 (shown in Autavia Reference 73663)

Valjoux 7734 (shown in Autavia, reference 73463

Valjoux 7740 (shown in Monaco, Reference 74033N

Valjoux 7750 (shown in Pasadena)

Dashboard Timepiece Movements

Valjoux 76 Dashboard Chronograph Movement — produced from 1946 to 1974

Valjoux 76 shown in early versions of the Super Autavia

Valjoux 5 Dashboard Chronograph Movement

Valjoux 5 shown in later version of the Super Autavia

Pocket Chronograph Movements

“Heuer 5” Pocket Chronograph Movement

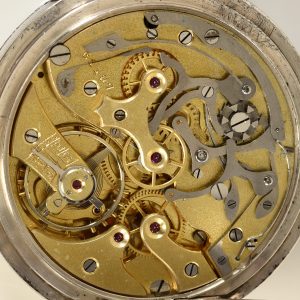

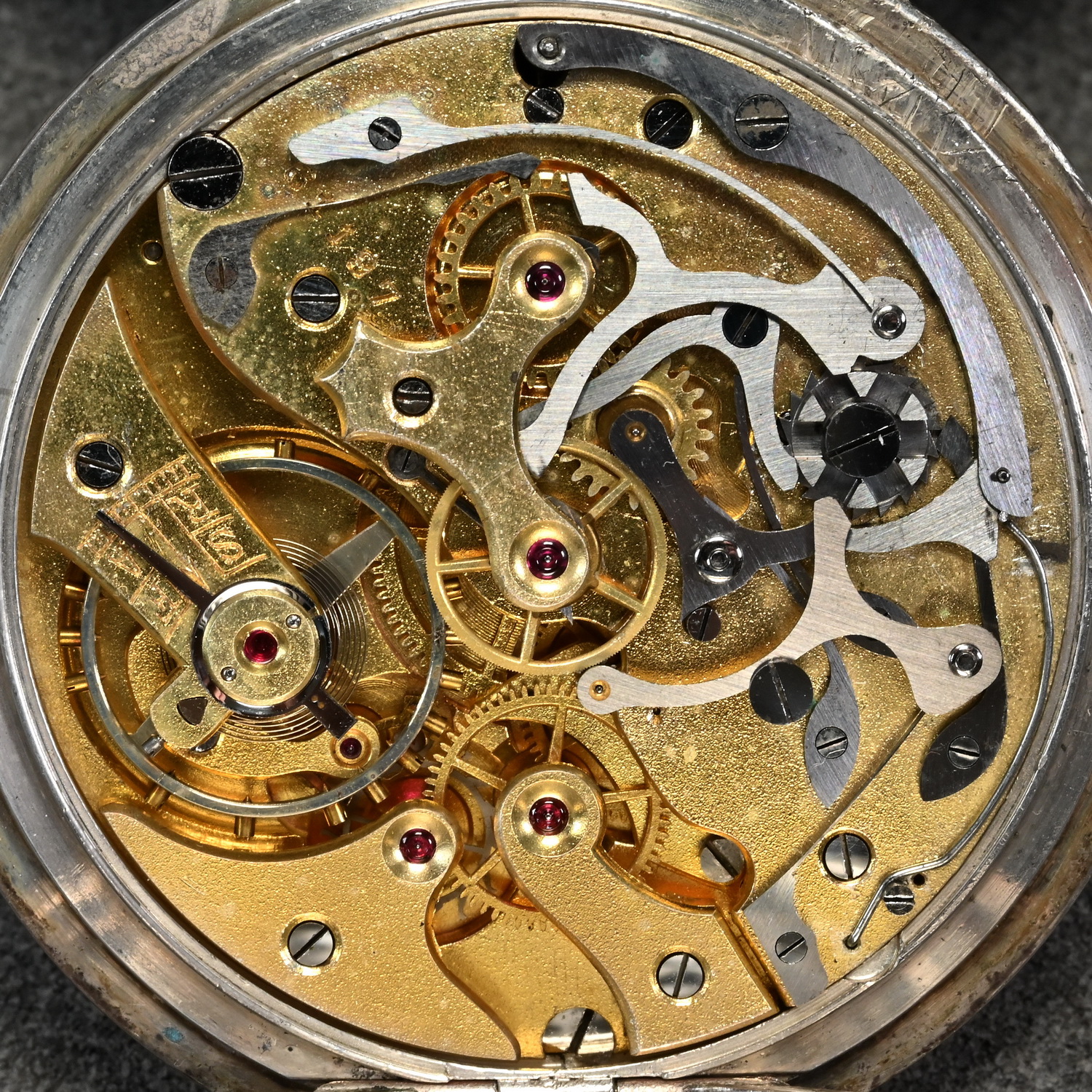

19 Ligne Heuer 5 movement shown in Ref 102A chronograph (circa 1930)

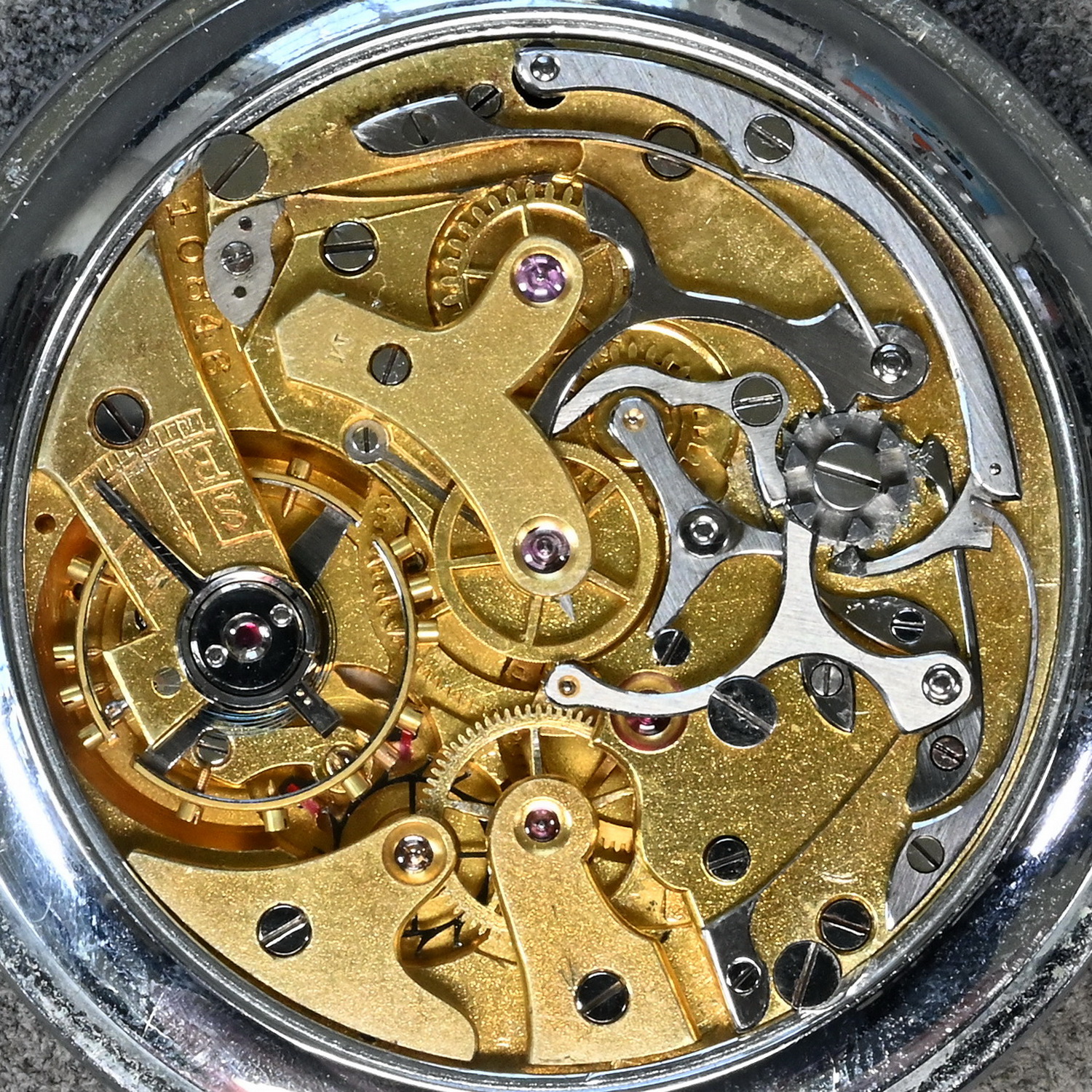

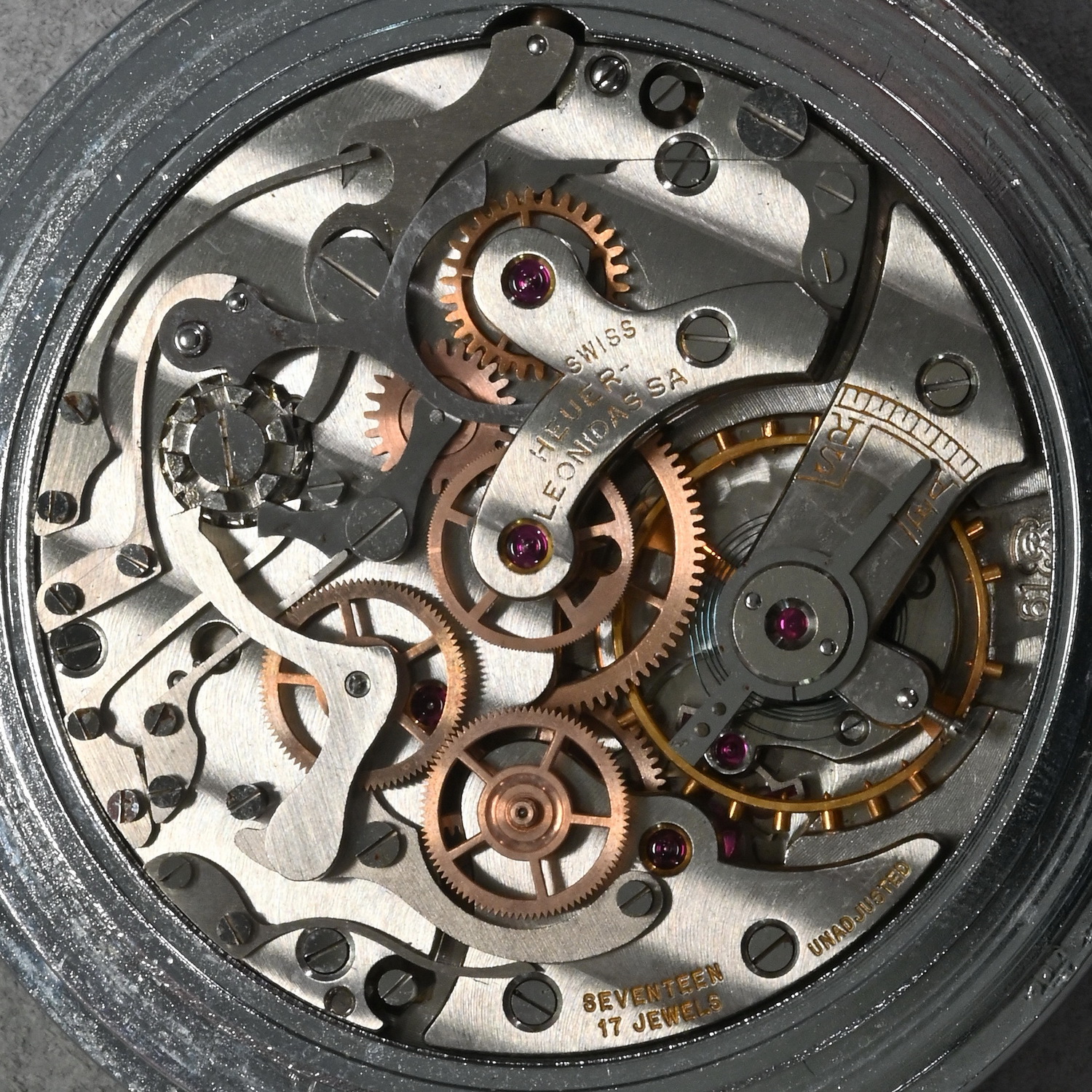

17 ligne Heuer 5 movement shown in Reference 701 pocket chronograph (circa 1935)

“Heuer 5” Split Second Pocket Chronograph Movement

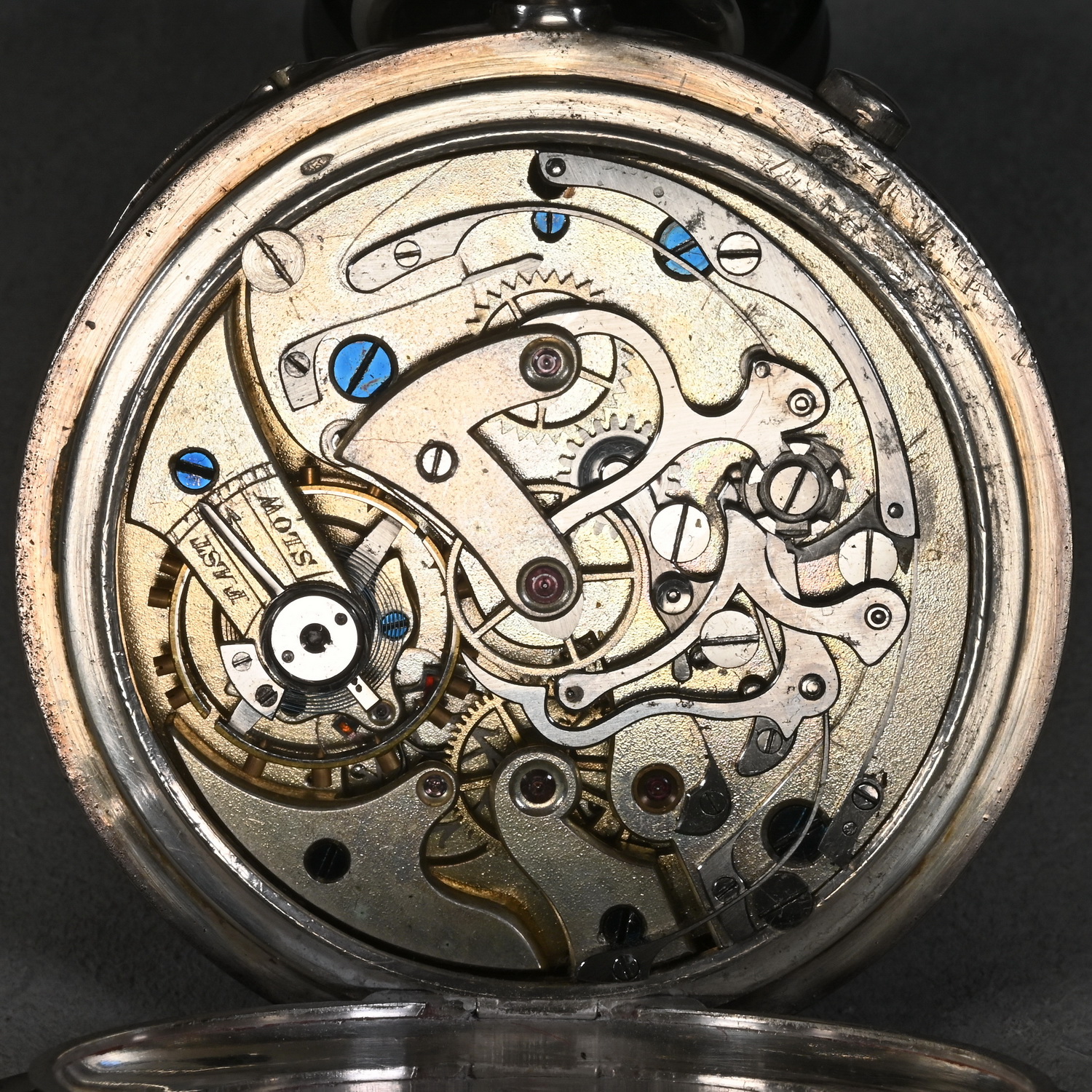

19 ligne “Heuer 5” Split Second Pocket Chronograph Movement shown in Reference 30x .935 karat gold pocket chronograph (Circa 1900)

17 ligne “Heuer 5” Split Second Pocket Chronograph Movement shown in 14 karat gold pocket chronograph (Circa 1914)

Valjoux 9 — Split Second Pocket Chronograph Movement

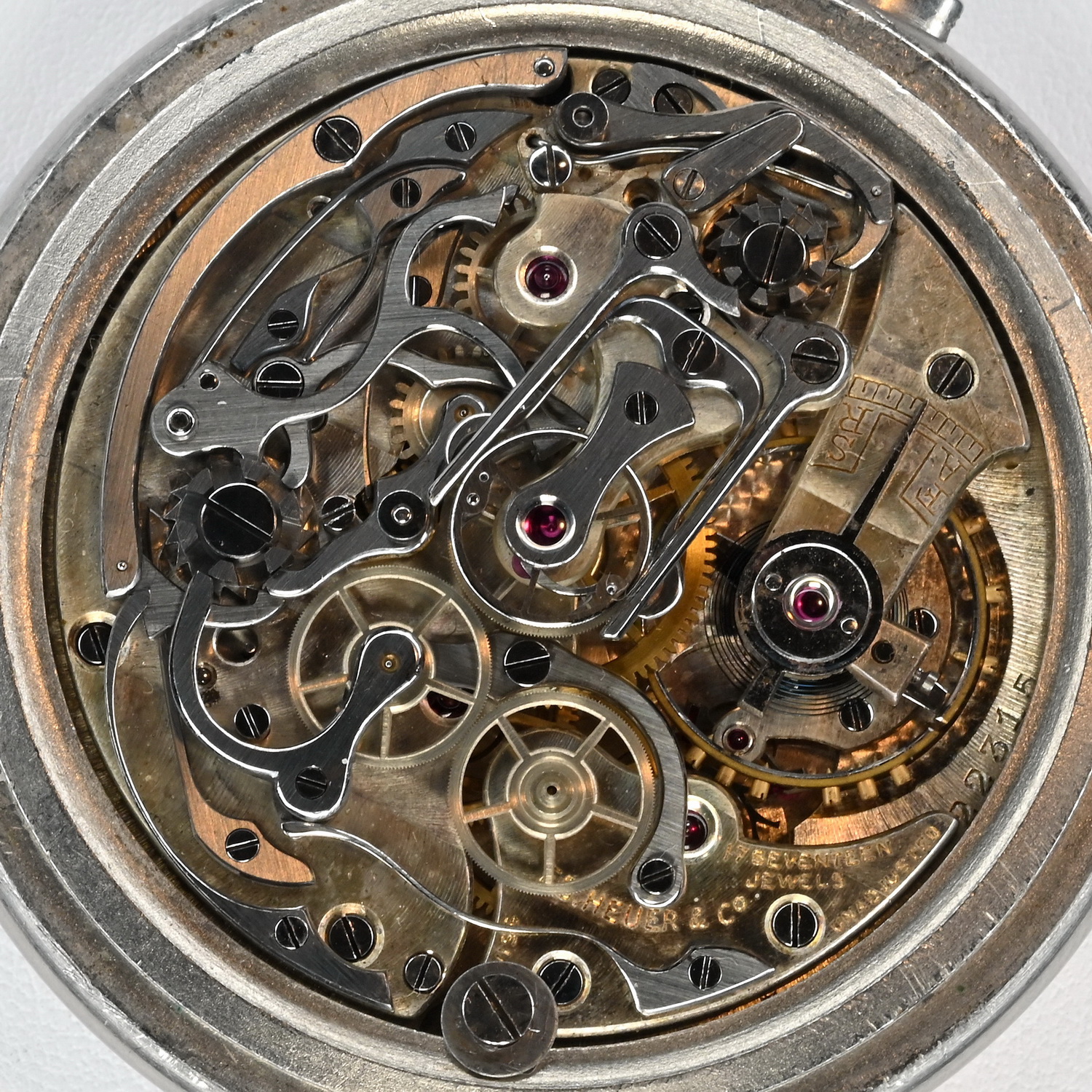

Valjoux 9 KVR shown in circa 1940 pocket chronograph

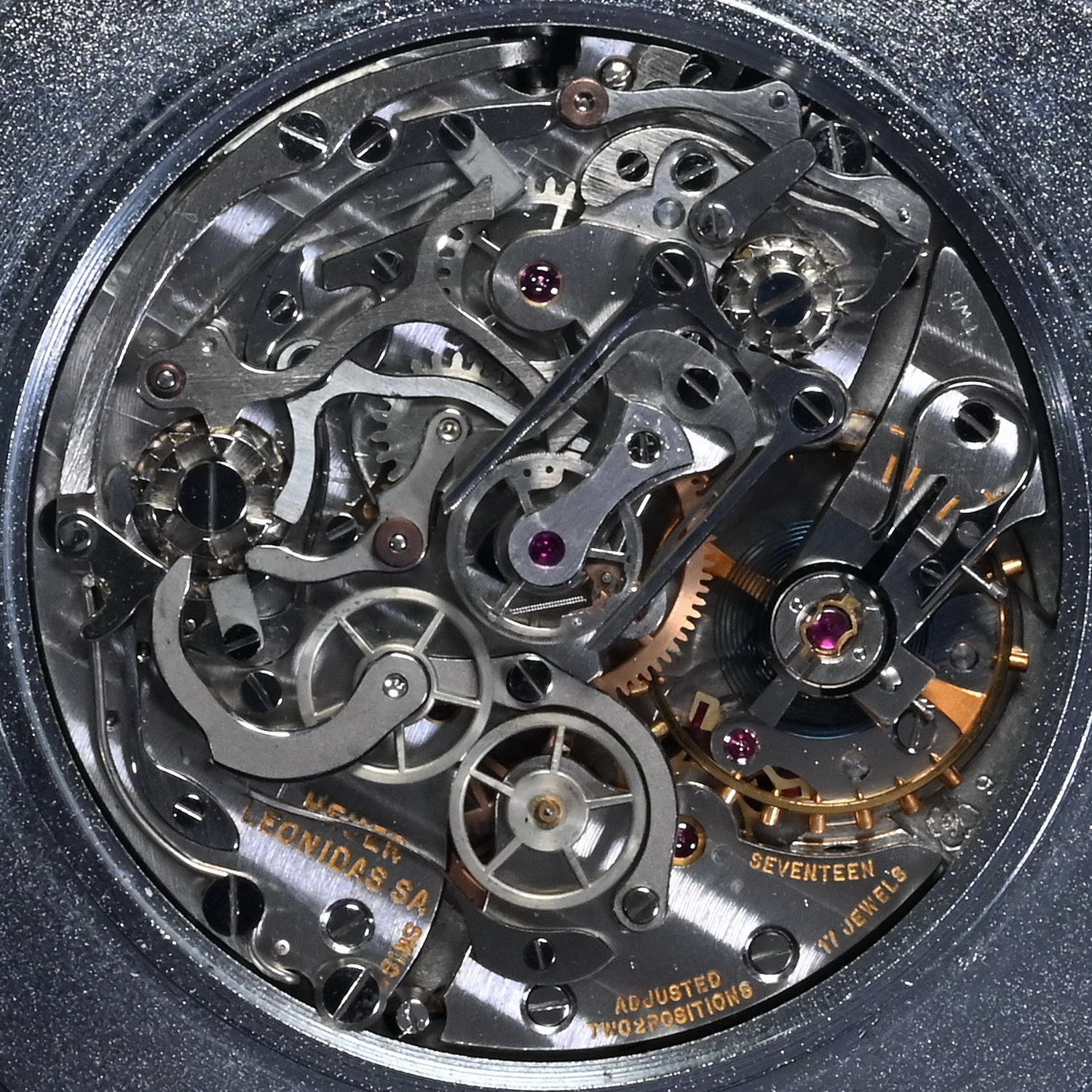

Valjoux 9 shown in Ref 11.404 Pocket Chronograph

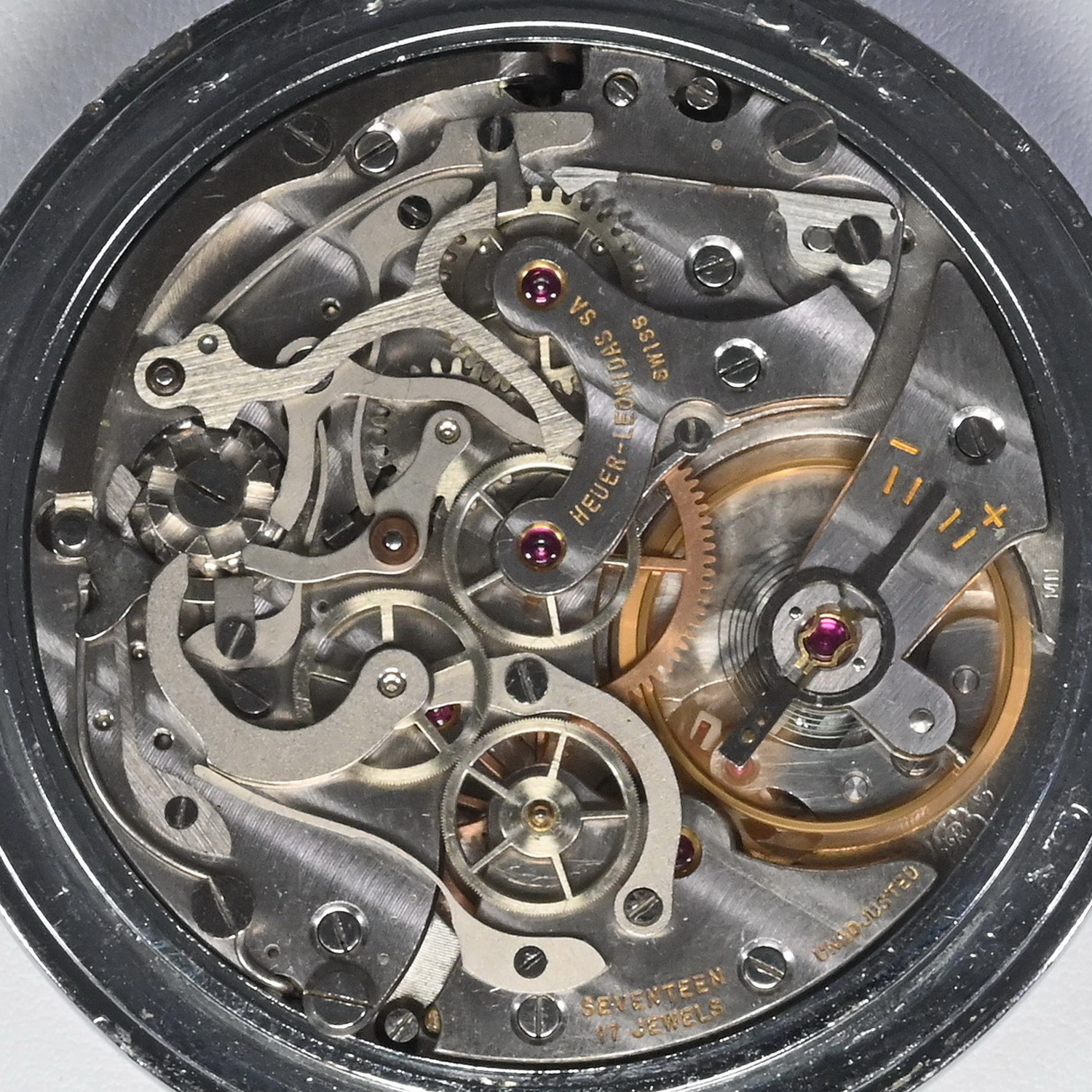

Valjoux 93 shown in Ref 11.402 Pocket Chronograph

Valjoux 61 — Pocket Chronograph Movement

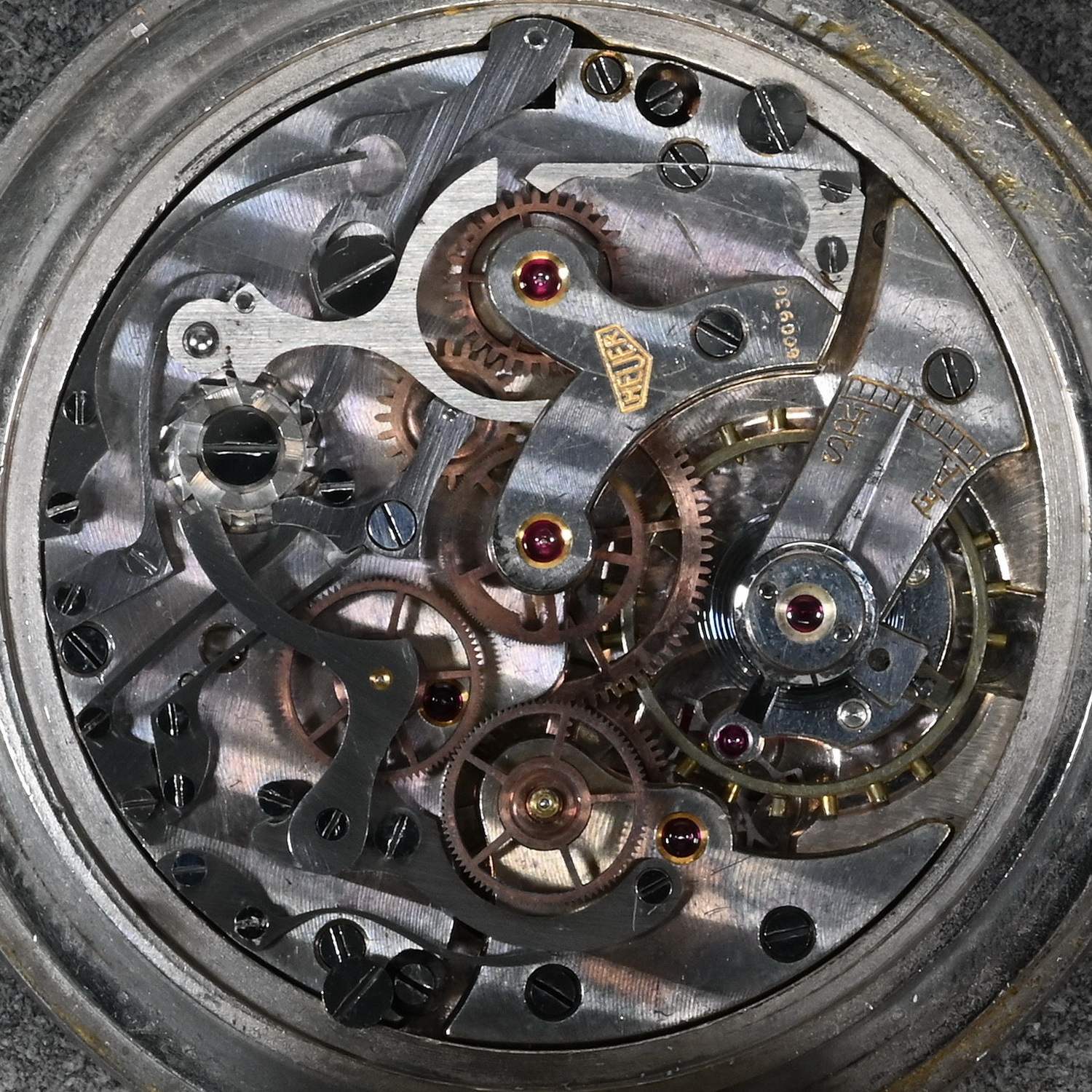

Valjoux 61 shown in Reference 701 Decimal Minutes Pocket Chronograph (circa 1940)

Valjoux 61 shown in Reference 701 Pocket Chronograph (circa 1964)

Valjoux 76R Split-Second Pocket Chronograph Movement

Valjoux 76R shown in Ref 11204 Pocket Chronograph
